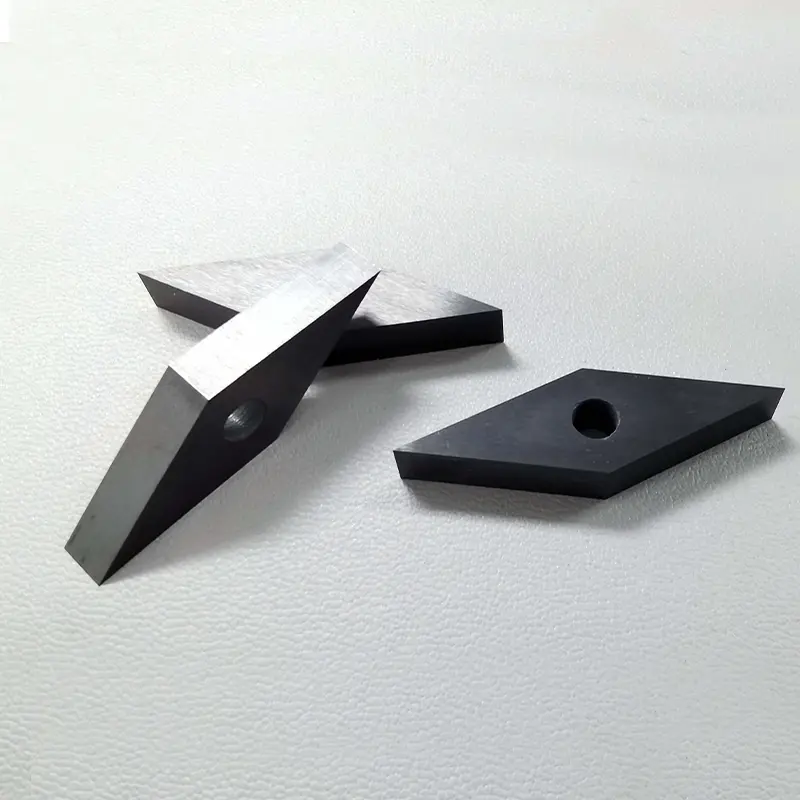

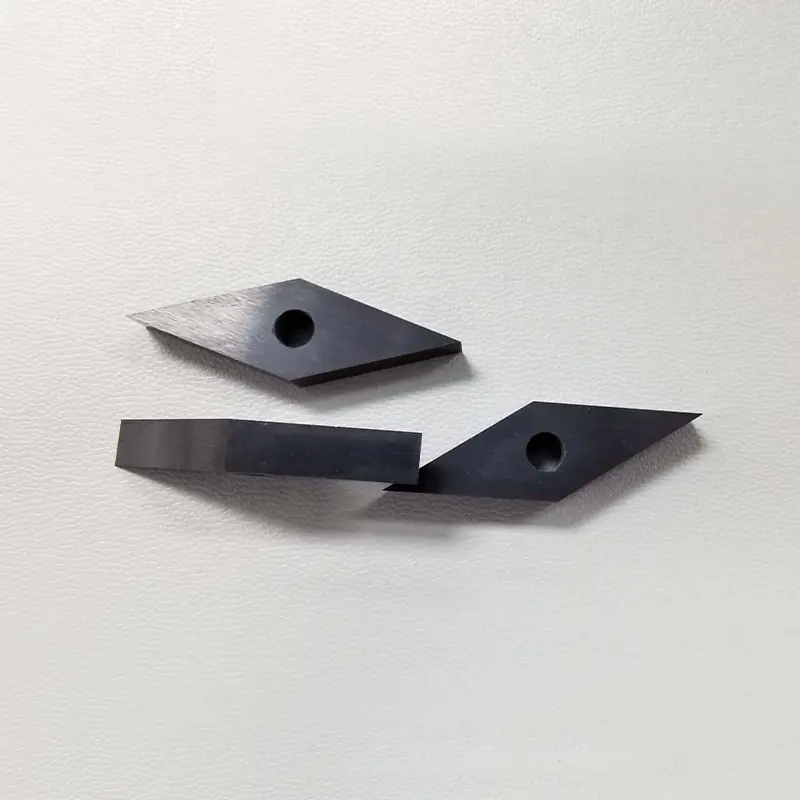

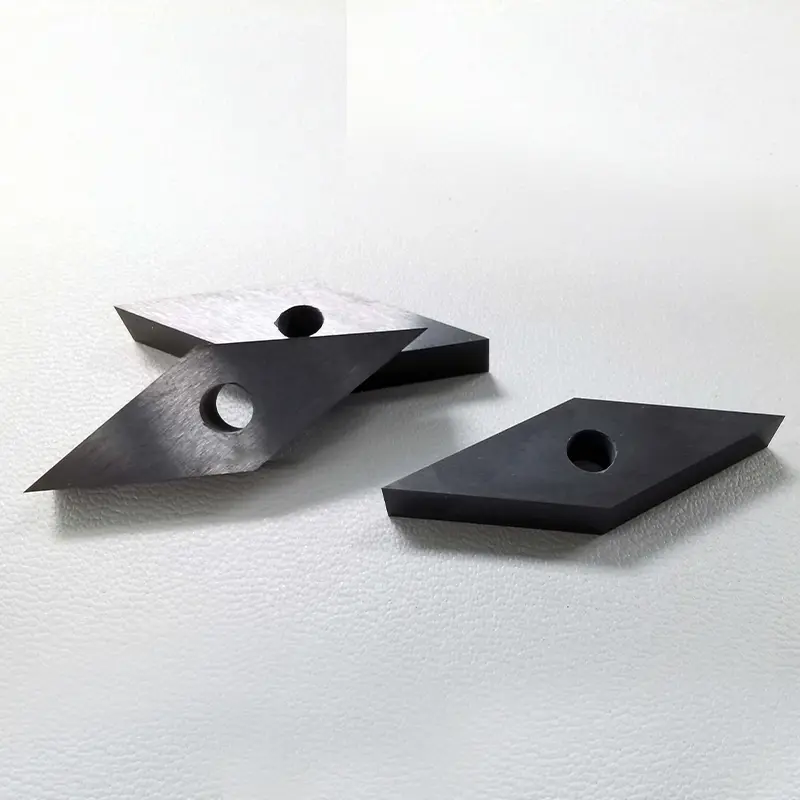

Silicon Nitride Ceramic Diamond Blocks

Silicon Nitride Ceramic Diamond Blocksmerits

The advantages of silicon nitride ceramic rhombic blocks lie firstly in the high strength and excellent anti-chipping performance. The sharp corners and beveled edges of rhombic blocks are prone to local stress concentration during assembly, compression and stress, and ordinary materials are prone to chipping and edge wear, while silicon nitride ceramics, with its extremely high flexural strength and excellent fracture toughness, can keep the corners intact for a long time to ensure positioning and guiding accuracy. It has excellent wear resistance and bevel stability. Silicon nitride ceramic diamond block is commonly used in bevel compression, guide slip and wedge positioning structure, silicon nitride ceramic high hardness surface can effectively resist long-term friction abrasion, to ensure that the bevel angle and contact surface flatness long-term stability.

Categories: 氮化硅陶瓷零件Tags: 陶瓷板, 陶瓷结构件

Enquire Us

Description

Description

Advantages of Silicon Nitride Ceramic Diamond Blocks

The high flexural strength of silicon nitride ceramics ensures that the diamond-shaped corners do not chip under long-term loads, and the high hardness significantly reduces the frictional wear rate of the beveled surfaces. Compared to repetitive pressing and sliding mechanisms in automated equipment, the angle consistency and contact surface accuracy can be maintained over a long period of time. The extremely low coefficient of thermal expansion of silicon nitride ceramics allows them to maintain dimensional stability in high-temperature fixtures and heat-treating fixtures, preventing thermal errors from affecting clamping effectiveness. For semiconductor equipment, it also avoids contamination by metal particles and improves system cleanliness and reliability.

High strength and not easy to chip
Long wear life
Excellent high temperature resistance
Highly clean and corrosion resistant

Applications of Silicon Nitride Ceramics

Silicon nitride ceramics have excellent mechanical, thermal and electrical properties. It is also one of the most thermodynamically stable high hardness industrial ceramic materials. It is ideal for bearing parts, especially those that need to work at high temperatures and pressures. Therefore, silicon nitride ceramic products are ideal for many industries, such as:

Rotary ball and roller bearings
Cutting Tools
Engine components: valves, rocker gaskets, sealing surfaces
Induction heating coil holder
Turbine blades, wheel blades, buckets
Welding and brazing fixtures
Heating Element Assemblies
crucible

Basic Properties of Silicon Nitride Ceramics

Silicon nitride ceramics are an inorganic ceramic material. Silicon nitride is very strong, especially hot pressed silicon nitride, which is one of the hardest materials in the world. It is characterized by high strength, low density and high temperature resistance.

Color: Gray and Gray-Black
Density: 3.15~3.25 g/cm3
Hardness: HRA 92~94
Maximum operating temperature: 1300 ~1600 °C
Thermal conductivity: 23-25 W.(MK)-1
Flexural strength: ≥900 Mpa
Fracture toughness: 6~8 (Mpa.m1/2)
Coefficient of thermal expansion (0~1400℃): 2.95~3×10^-6/C
