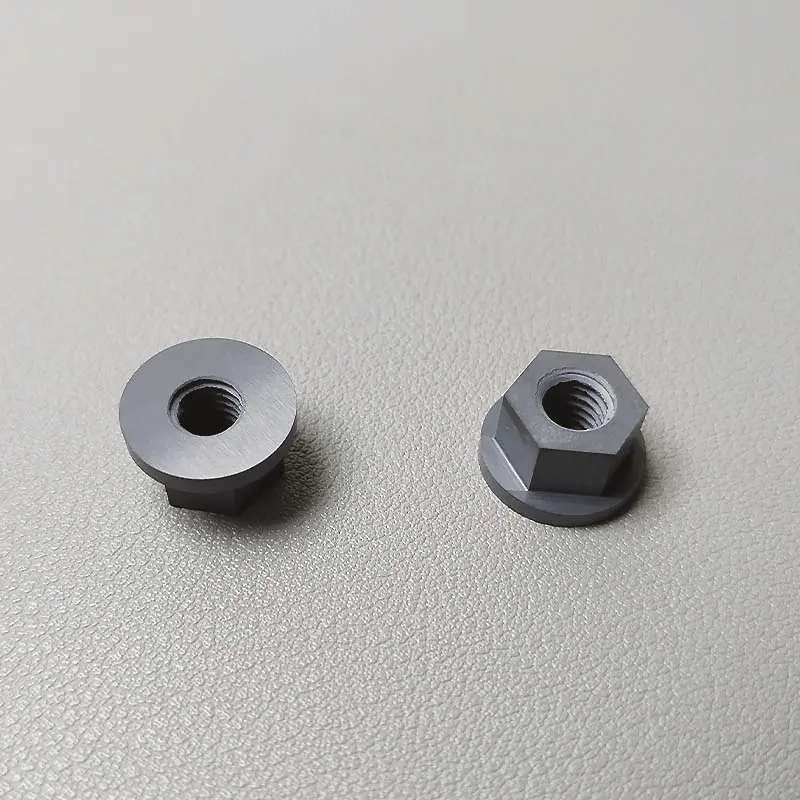

产品为氮化硅陶瓷六角法兰螺母，结构紧凑，内螺纹精密，底部带台阶设计可有效分散应力、提升连接稳定性。产品呈灰黑色，表面致密光滑，尺寸一致性高。氮化硅材料具备高强度、高硬度、优异耐磨性及抗热震性能，可在高温、腐蚀及绝缘环境中长期稳定使用，是替代金属紧固件的理想选择。

Silicon nitride (Si₃N₄) is a typical high-strength engineering ceramic material, which belongs to covalently bonded ceramics. It combines high hardness, low density, high flexural strength and excellent thermal shock stability, and is currently recognized as one of the structural ceramics with the best overall performance.

The key performance parameters of silicon nitride ceramic materials are as follows:

The significant advantage of silicon nitride over conventional ceramics such as alumina and silicon carbide is the combination of high strength and resistance to thermal shock. This makes it particularly suitable for high-stress applications such as ceramic rings, ceramic plates, ceramic bearings, seals and high-temperature mechanical components.

氮化硅陶瓷是一种具有高精度形结构的功能部件，常用于机械支撑、密封、隔热、绝缘或磨损控制。它的内外径、厚度及表面平整度均可根据设备要求定制。

• Support and isolation: Used in mechanical bearings, turbines, and pumps to provide high strength support and electrical insulation;

• Sealing and anti-friction: Used as a high hardness sealing ring in fluid machinery or chemical equipment to prevent leakage;

• High Temperature and Corrosion Resistance: Maintains a stable structure in high temperature areas such as gas heating furnaces and gas turbines;

• Insulation protection: prevents current leakage and heat transfer interference in electronic devices.

Silicon nitride ceramics are not only used for ring components, but have also given rise to a variety of product types, including:

氮化硅陶瓷零件凭借卓越性能，已经在多个工业领域中取代传统金属或氧化物陶瓷部件：

Especially in high-speed bearings and insulation sealing system, silicon nitride ceramic ring can significantly improve the stability and service life of the system, so in the field of new energy vehicles and aviation demand is growing rapidly.

Silicon nitride ceramics are difficult to machine, and their production process requires a high degree of equipment and experience. Zhihao Ceramics adopts the world's leading sintering and precision grinding technology to ensure that the products meet international standards in terms of dimensional accuracy and surface quality.

1. Raw material preparation: select high-purity Si₃N₄ powder and additives;

2. Molding process: Hot Isostatic Pressing (HIP) or Cold Isostatic Pressing (CIP) technology is used to ensure uniform density;

3. High-temperature sintering: Reaction sintering in nitrogen atmosphere above 1700°C to form a dense structure;

4. Precision machining: using diamond grinding wheel precision grinding, to ensure the tolerance of inner and outer diameter in ± 0.002mm;

5. Surface treatment and inspection: Optical leveling inspection and three-coordinate dimensional measurement are adopted to ensure product stability.

通过这些精密工艺，致好陶瓷制造的氮化硅陶瓷在批量一致性、机械稳定性及使用寿命方面均处于行业领先水平。

For engineers and buyers, the following parameters should be emphasized when purchasing silicon nitride ceramic rings:

1. Operating Temperature and Environment: Verify that it is not used under high temperature, vacuum or corrosive atmosphere;

2. Load and Rotation Speed: Hot Isostatic Pressure (HIP) sintered products should be preferred for high speed rotary applications;

3. Dimensional tolerances and fit accuracy: customized inner and outer diameter accuracy according to fitting assembly requirements;

4. Surface roughness: Ra≤0.1μm is recommended for sliding friction applications;

5. Insulation and Thermal Conductivity Requirements: Selecting the right formulation for electrical equipment or thermal management systems.

Working with specialized manufacturers such as Great Ceramic allows for customized dimensions, precision grades, and surface finish solutions to ensure the best fit between product and system.

As a leading manufacturer of advanced ceramics in China, Zhihao Ceramics specializes in the R&D and production of silicon nitride ceramic rings, silicon nitride ceramic sheets, silicon nitride ceramic plates, silicon nitride ceramic balls and other series of products. The company has more than 10 years of technical accumulation, equipped with automatic sintering furnace, high precision CNC grinding center and perfect testing system.

Our strengths include:

• ISO9001 quality system and full-process testing guarantee;
• Customized size support (precision machining within the range of 2mm-200mm inside diameter);
• Rapid prototyping and volume delivery capabilities;
• Export standard packaging and international customer service system.

Zhihao Ceramics' silicon nitride products have been widely used by industrial customers in Europe, Japan and the United States, and have been certified for long-term cooperation by many equipment manufacturers.

It can be seen that silicon nitride ceramics are the most balanced high-end structural ceramic materials in terms of comprehensive performance, and are especially suitable for long-term use in high-load, high-temperature and insulating environments.

随着新能源、半导体设备、航空发动机及智能制造领域的快速发展，对高强度、轻量化、长寿命材料的需求不断提升。氮化硅陶瓷凭借其强度高、耐磨性好、抗热震优异、绝缘可靠等特点，正逐步成为先进工业设备的关键功能元件。

未来，随着3D打印成型技术与致密烧结工艺的不断成熟，氮化硅陶瓷将实现更高精度、更复杂结构的量产，为工业创新带来更广阔的可能。
